Series 8 S-Coils (Internal Frame)

Series 8 S-Coils (Internal Frame)

SPECIFICATIONS

Wattage: Nominally 16 watt at 68°F./20°C.
Duty Rating: Continuous up to 115% voltage.
Ambient Operating Temperature: 212°F/100°C
Encapsulating Material: Thermoplastic Polyester (PET) (Rynite 415 HP).
A.C. Coils: Internally rectified with a full wave bridge (no inrush current).
Termination Options: See below and on the next page.

16 WATT
VOLTS OHMS INITIAL CURRENT
DRAW (AMPS)
10 DC 6.2 1.60
12 DC 9.0 1.33
20 DC 25.0 .80
24 DC 35.8 .67
120 AC ^827 .15
240 AC ^3306 .07
^ RESISTANCE CANNOT BE MEASURED ON AC COIL ASSEMBLIES

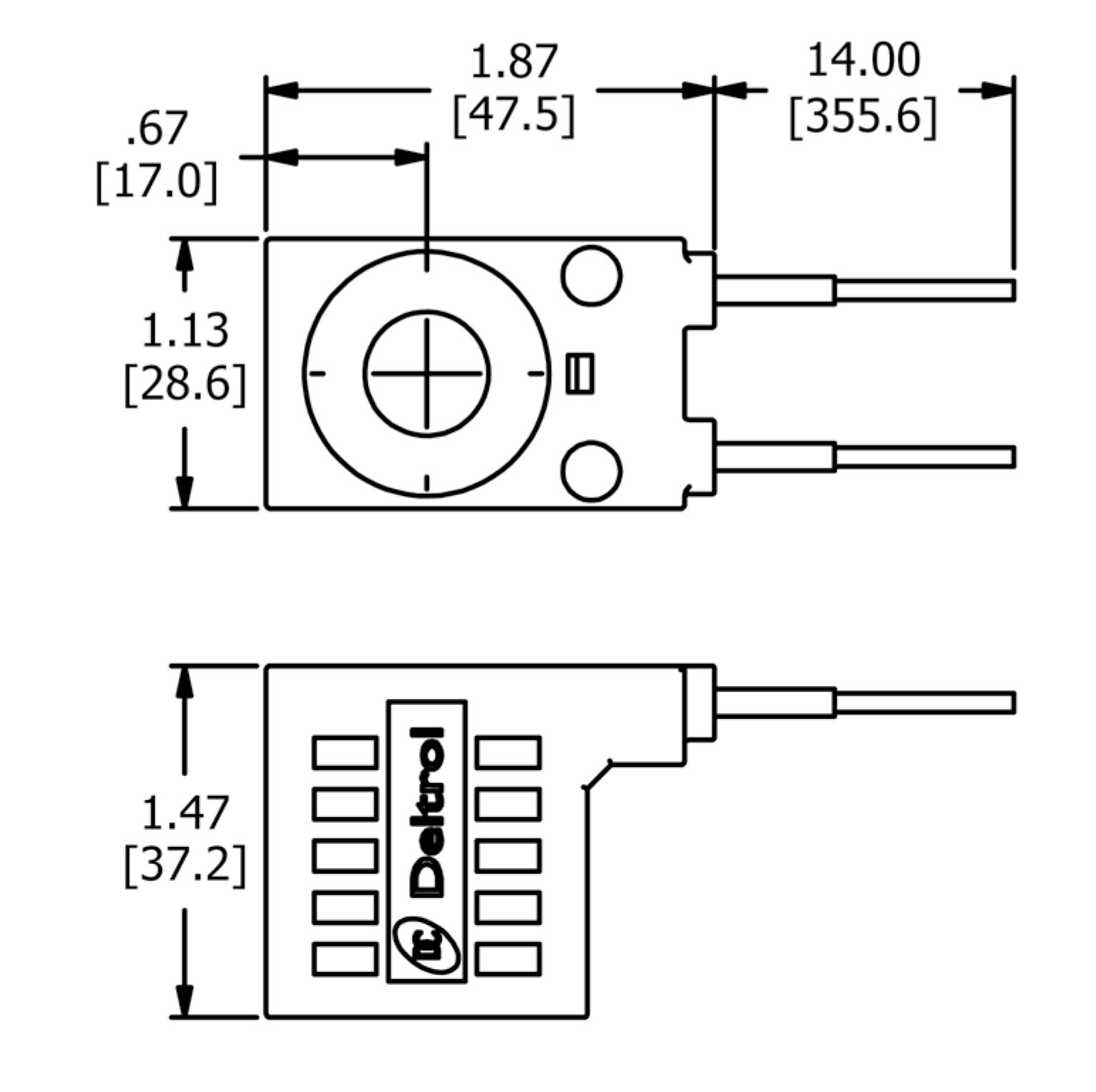

DUAL LEAD - CODE - **DS

VOLTS PART NUMBER CODE LEAD COLOR
10 DC 10205-94 D10DS GREEN
12 DC 10184-42 D1DS RED
24 DC 10184-37 D2DS BLUE
120 AC 10184-49 A5DS BLACK
240 AC 10184-53 A6DS YELLOW
FOR INTERNAL DIODE – CONSULT FACTORY

Coil Series 8 Double Leads

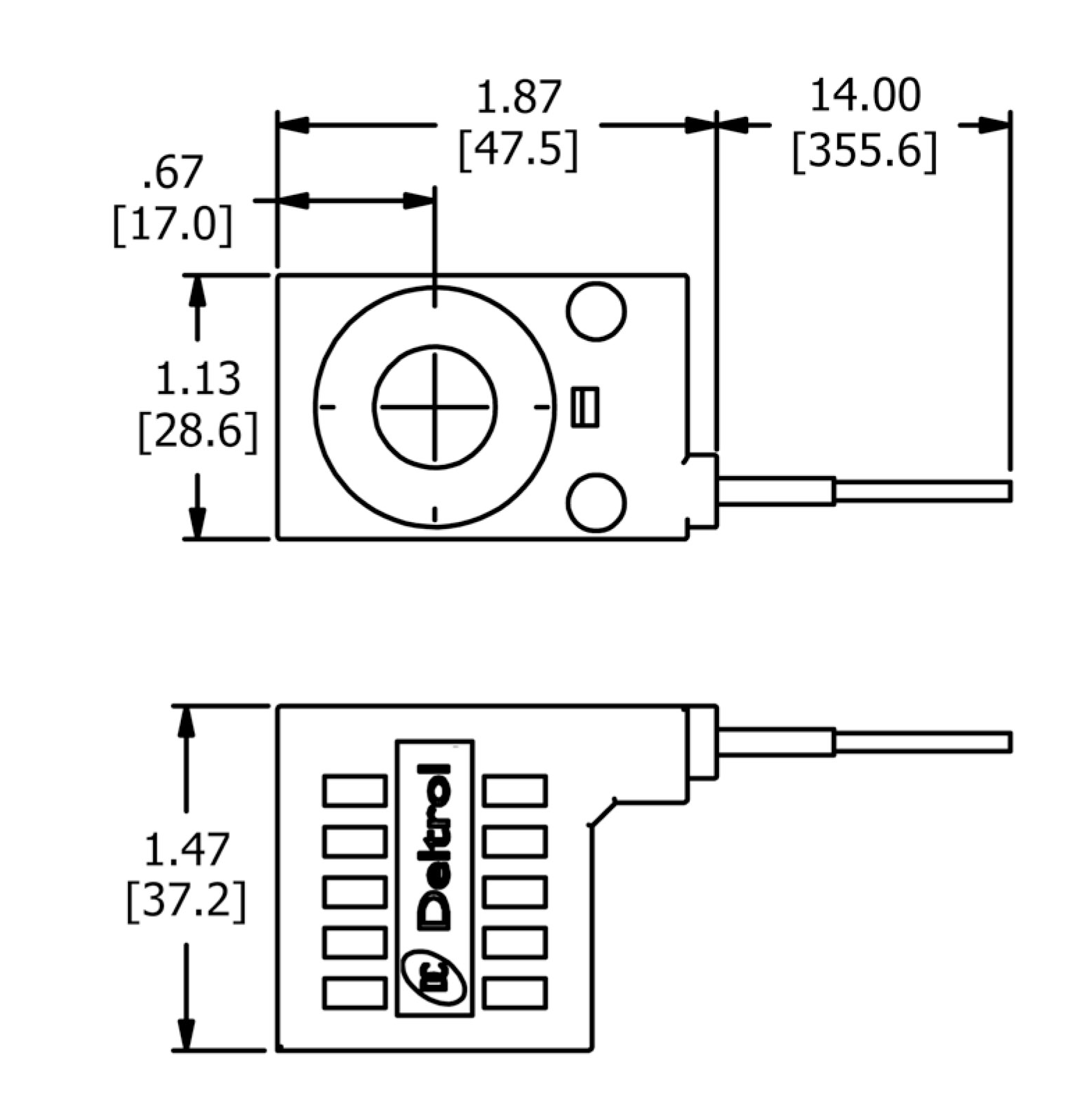

SINGLE LEAD - CODE - **SS

VOLTS PART NUMBER CODE LEAD COLOR
10 DC 10194-19 D10SS GREEN
12 DC 10184-32 D1SS RED
24 DC 10190-44 D2SS BLUE

Coil Series 8 Single Lead

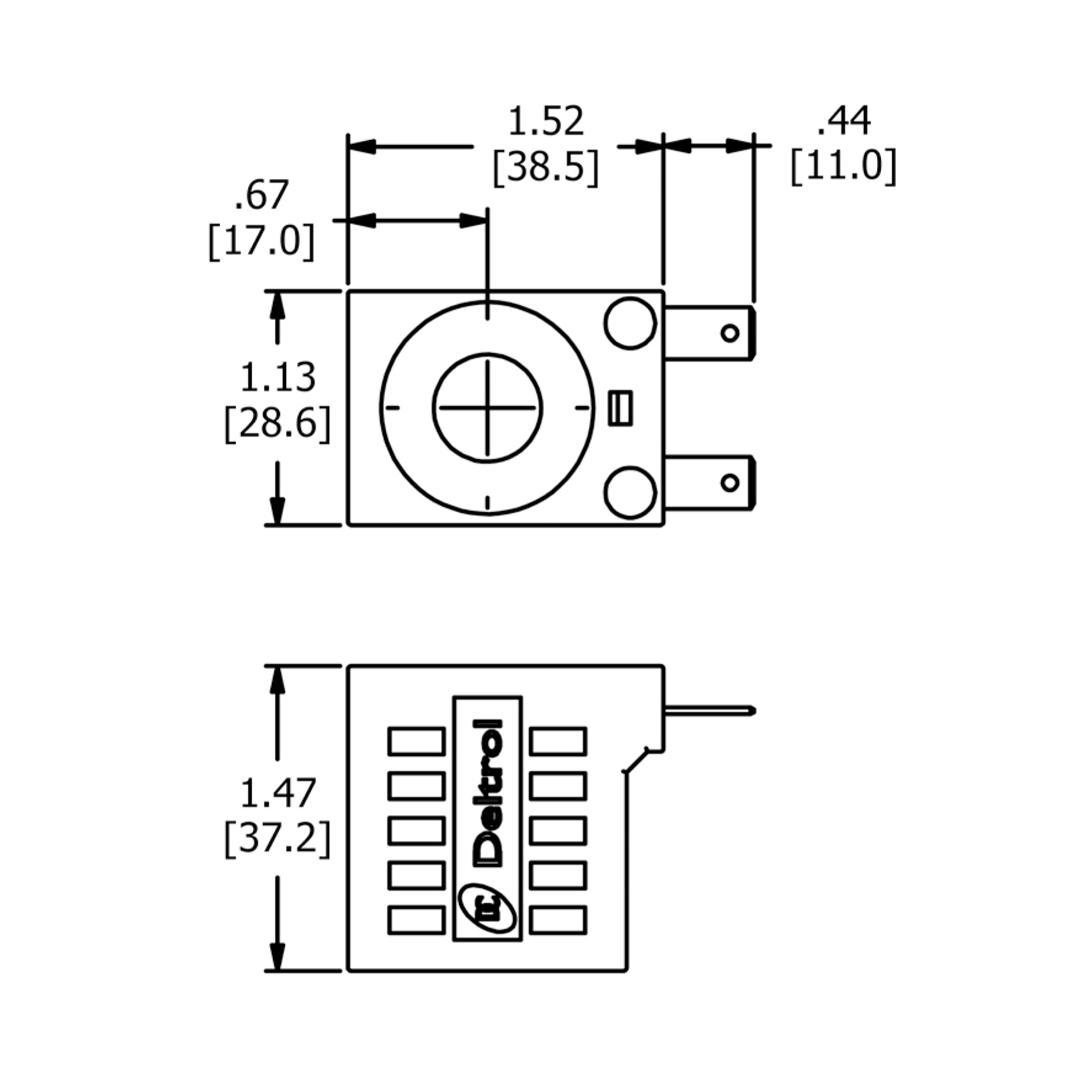

DUAL SPADE - CODE - **BS

VOLTS PART NUMBER CODE
10 DC 10221-46 D10BS
12 DC 10216-12 D1BS
20 DC 10222-51 D20BS
24 DC 10216-11 D2BS
120 AC 10222-49 A5BS
240 AC 10222-50 A6BS
FOR INTERNAL DIODE - CONSULT FACTORY
TERMINATION: 1/4" MALE QUICK-CONNECT PER SAE J858A (TYPE 1B)

Coil Series 8 Dual Spade

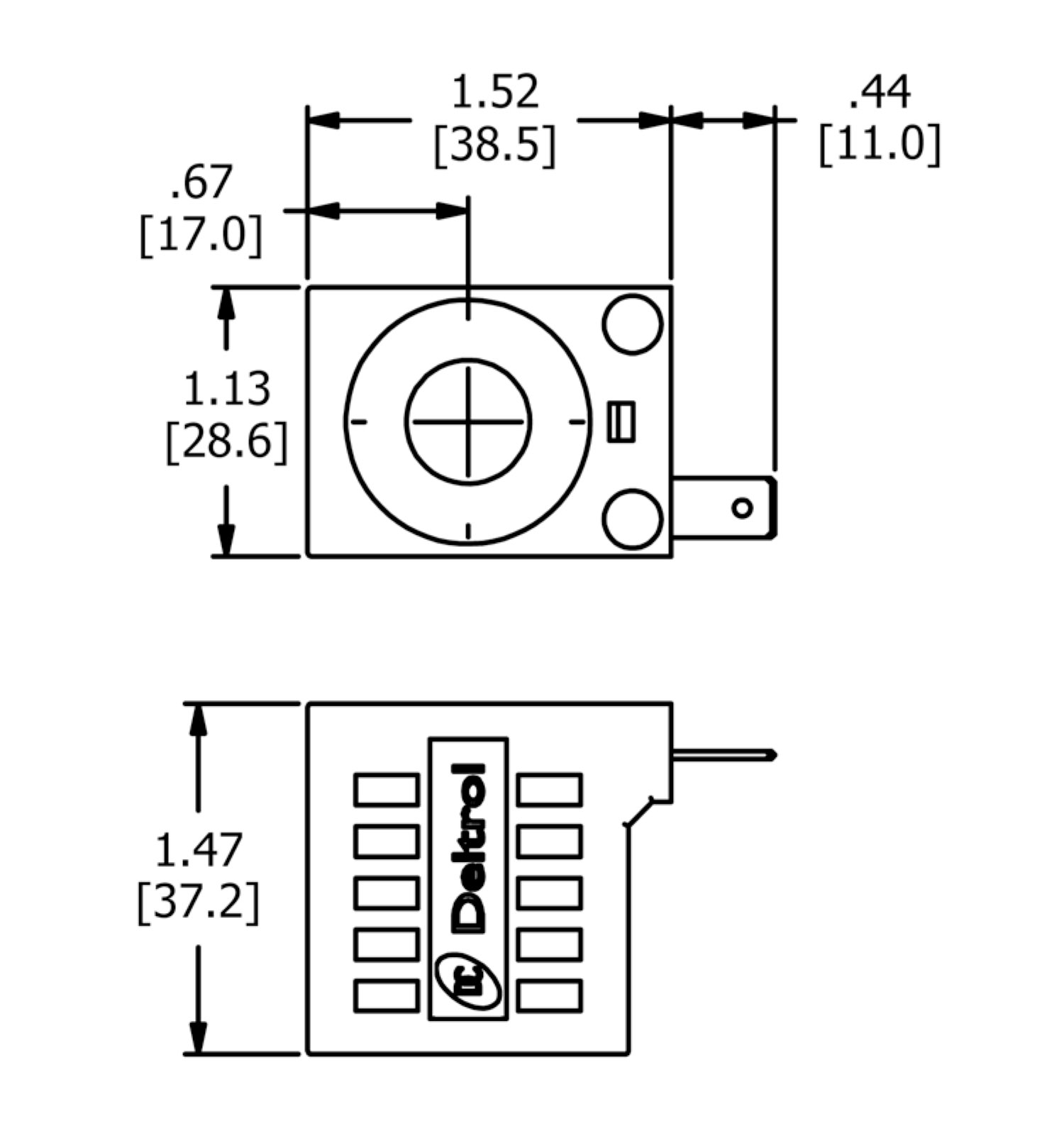

SINGLE SPADE - CODE - **AS

VOLTS PART NUMBER CODE
10 DC 10222-46 D10AS
12 DC 10221-30 D1AS
24 DC 10221-47 D2AS
FOR INTERNAL DIODE – CONSULT FACTORY

TERMINATION: 1/4” MALE QUICK-CONNECT - PER SAE J858A (TYPE 1B)

Coil Series 8 Single Spade

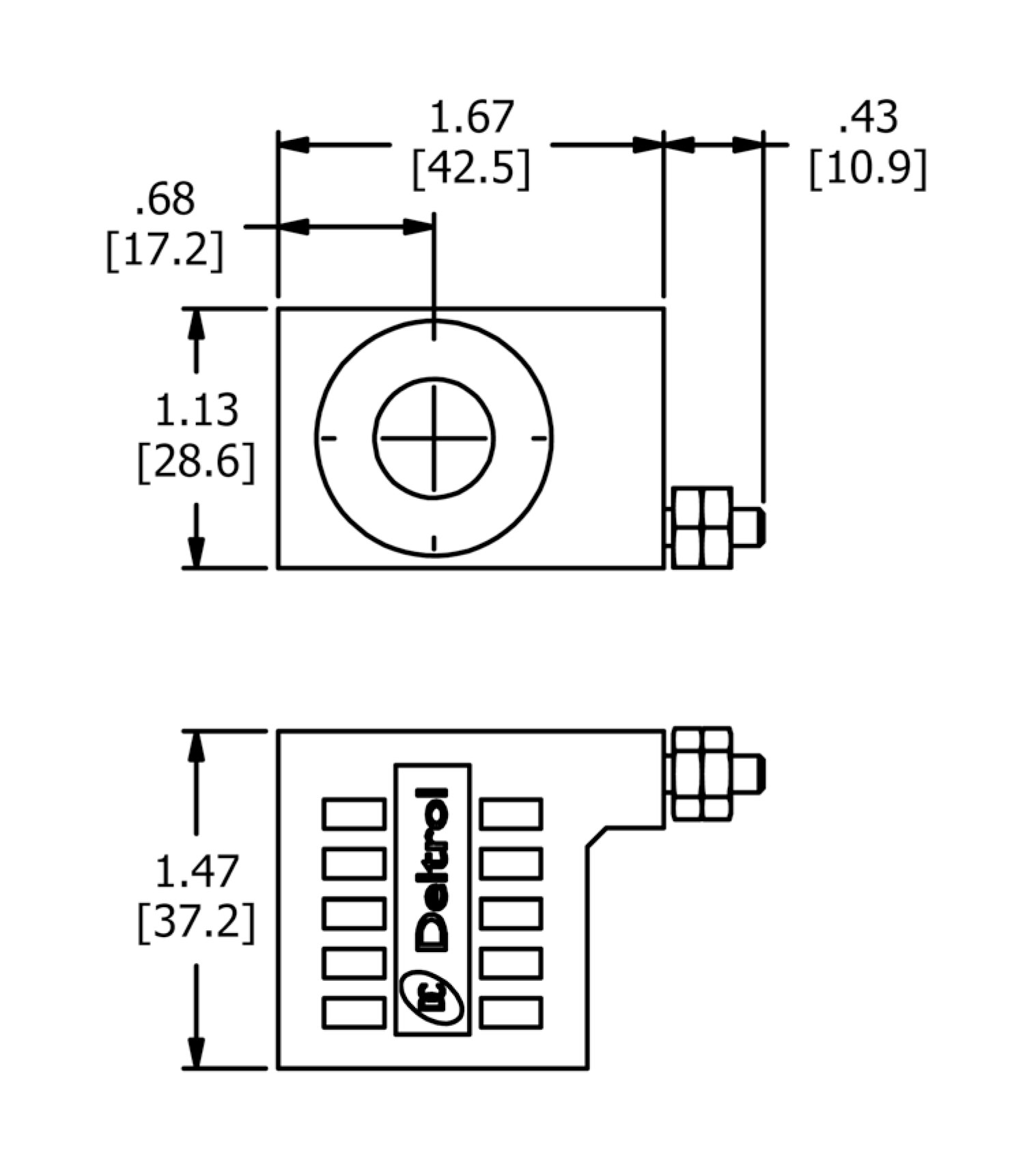

SINGLE STUD - CODE - **ES

VOLTS PART NUMBER CODE
10 DC 10196-60 D10ES
12 DC 10196-61 D1ES
24 DC 10196-62 D2ES
FOR INTERNAL DIODE – CONSULT FACTORY

TERMINATION: 8-32 MALE STUD WITH BRASS NUTS

Coil Series 8 Single Stud

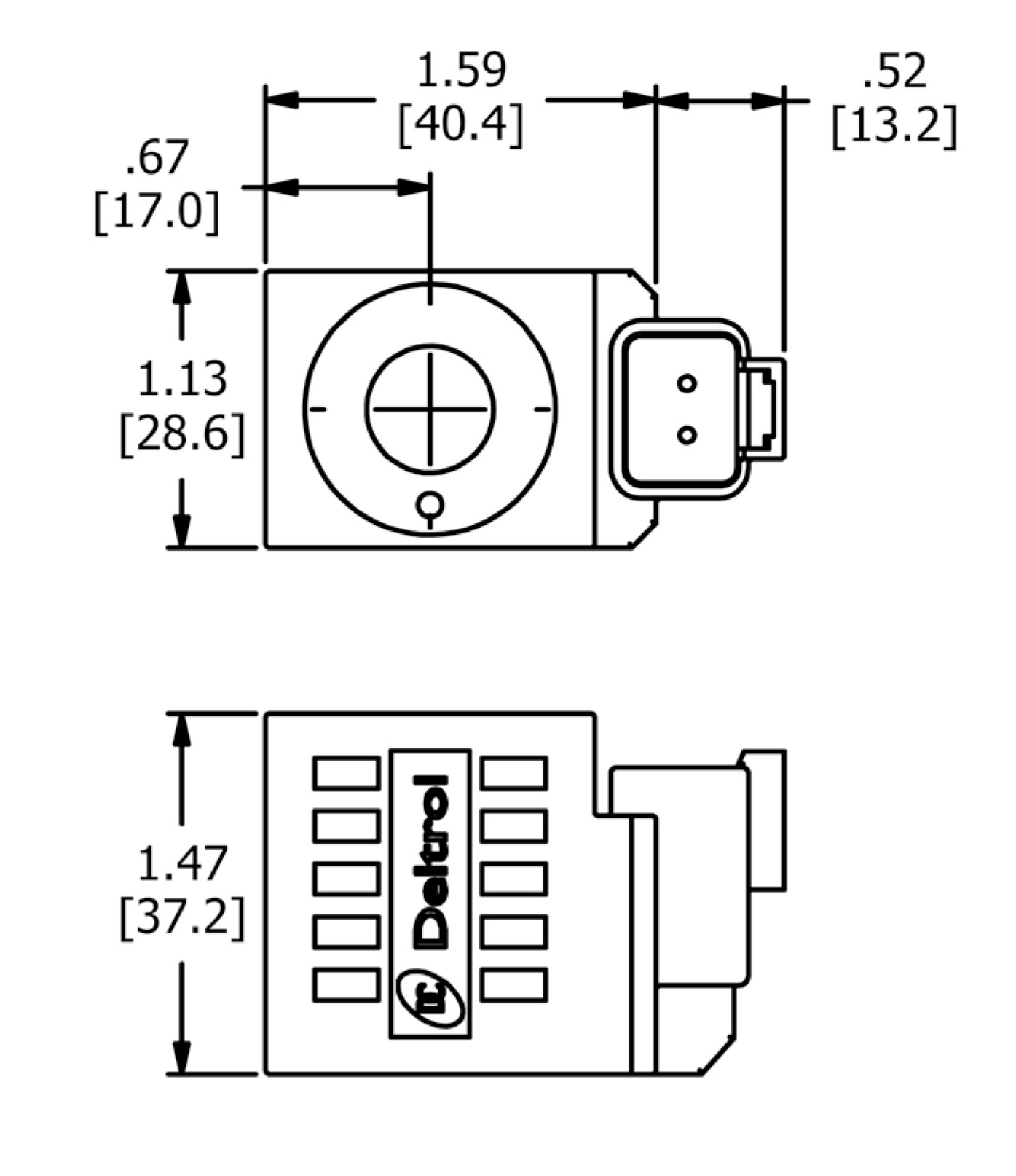

DEUTSCH - CODE - **US

VOLTS PART NUMBER CODE
10 DC 10210-13 D10US
12 DC 10222-99 D1US
20 DC 10228-95 D20US
24 DC 10228-52 D2US
FOR INTERNAL DIODE – CONSULT FACTORY

TERMINATION: INTEGRAL DEUTSCH CONNECTOR DT04-2P - MATING CONNECTOR - DT06-2S

Coil Series 8 Deutsch

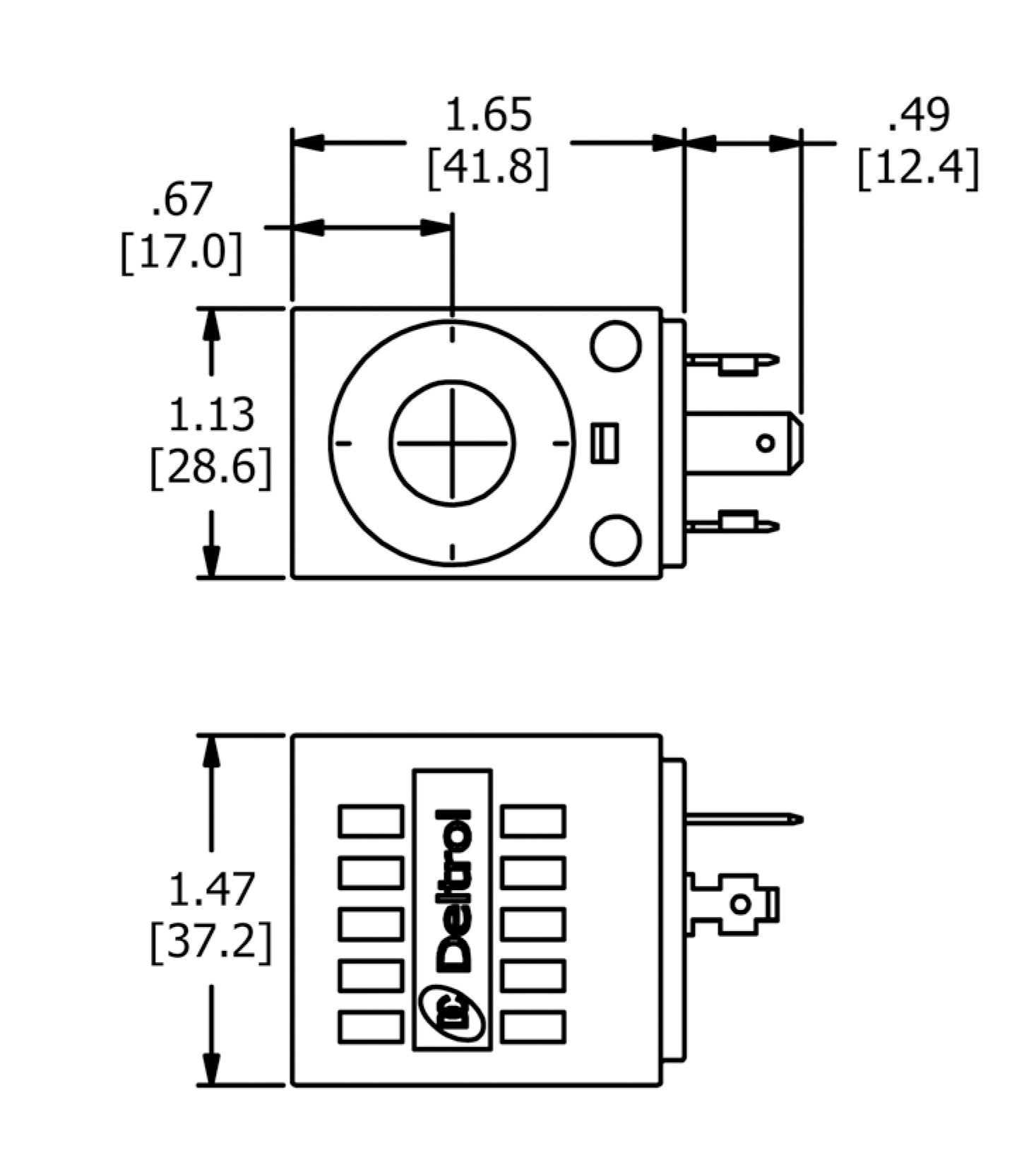

DIN 43650 (HIRSCHMANN®) - CODE - **HS

VOLTS PART NUMBER CODE
12 DC 10246-17 D1HS
24 DC 10246-18 D2HS
120 AC 10246-43 A5HS
240 AC 10246-20 A6HS
FOR INTERNAL DIODE – CONSULT FACTORY

TERMINATION: HIRSCHMANN GSR 200 – DIN 43650
FORM A/ISO 4400, EN175301-803:2000
2 POLE + GROUND – MATING CONNECTOR 43650

Coil Series 8 Hirschmann

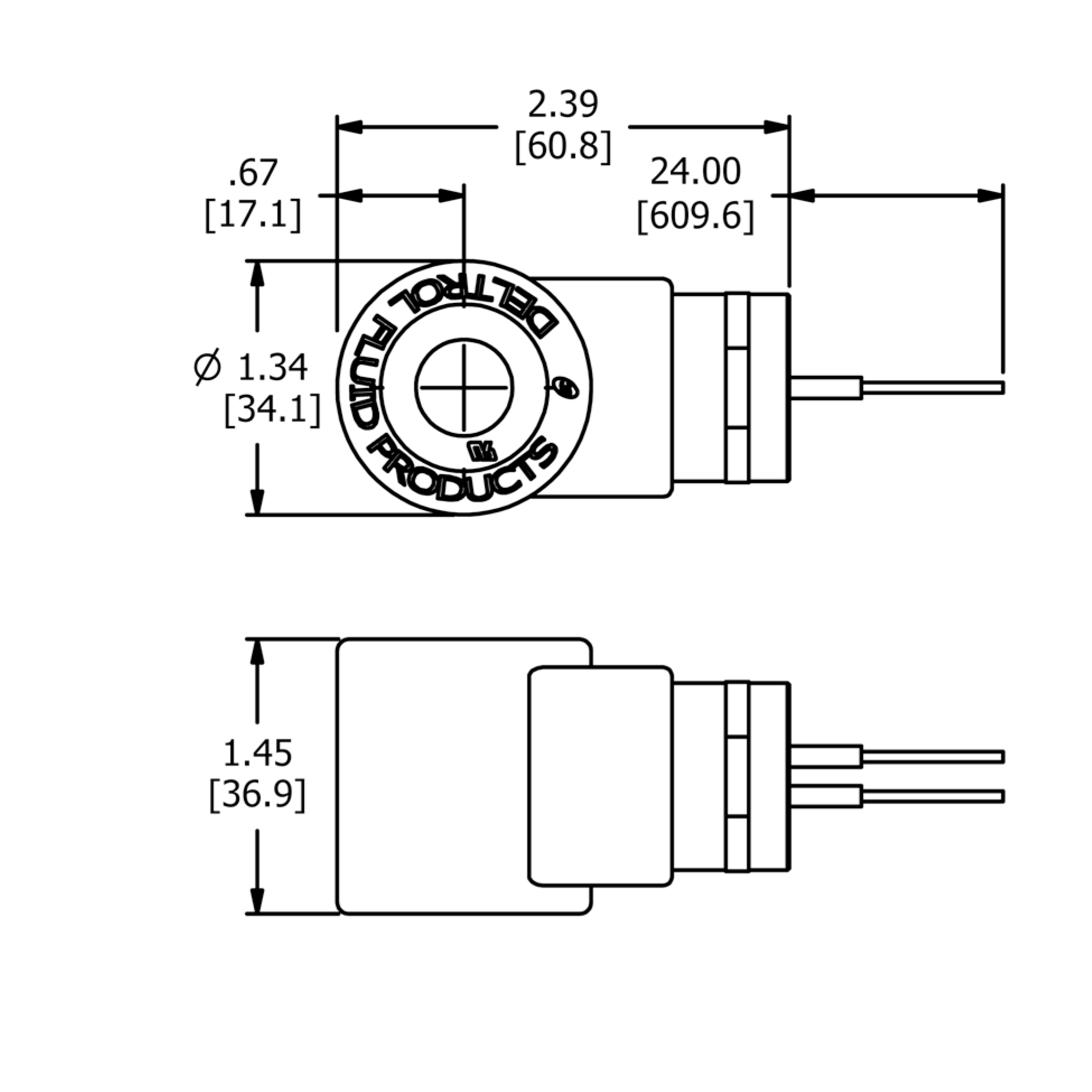

CONDUIT (FEMALE 1/2-14 NPT) - CODE - **C

VOLTS PART NUMBER CODE
120 DC 10148-70 A5C
240 DC 10176-89 A6C
DUTY RATING INTERMITTENT

LEAD WIRES: 18/20 GAUGE MEETS SAE J1128 XLPE, TYPE SXL

Coil Series 8 Conduit
