Series 10 K-Coils (External Frame)

Series 10 K-Coils (External Frame)


DUAL LEAD (IP67 rated) - CODE - **DE

VOLTS PART NUMBER CODE LEAD COLOR
10 DC 10306-20 D10DE GREEN
12 DC 10306-21 D1DE RED
20 DC 10306-22 D20DE LIGHT BLUE
24 DC 10306-23 D2DE BLUE
FOR INTERNAL DIODE – CONSULT FACTORY

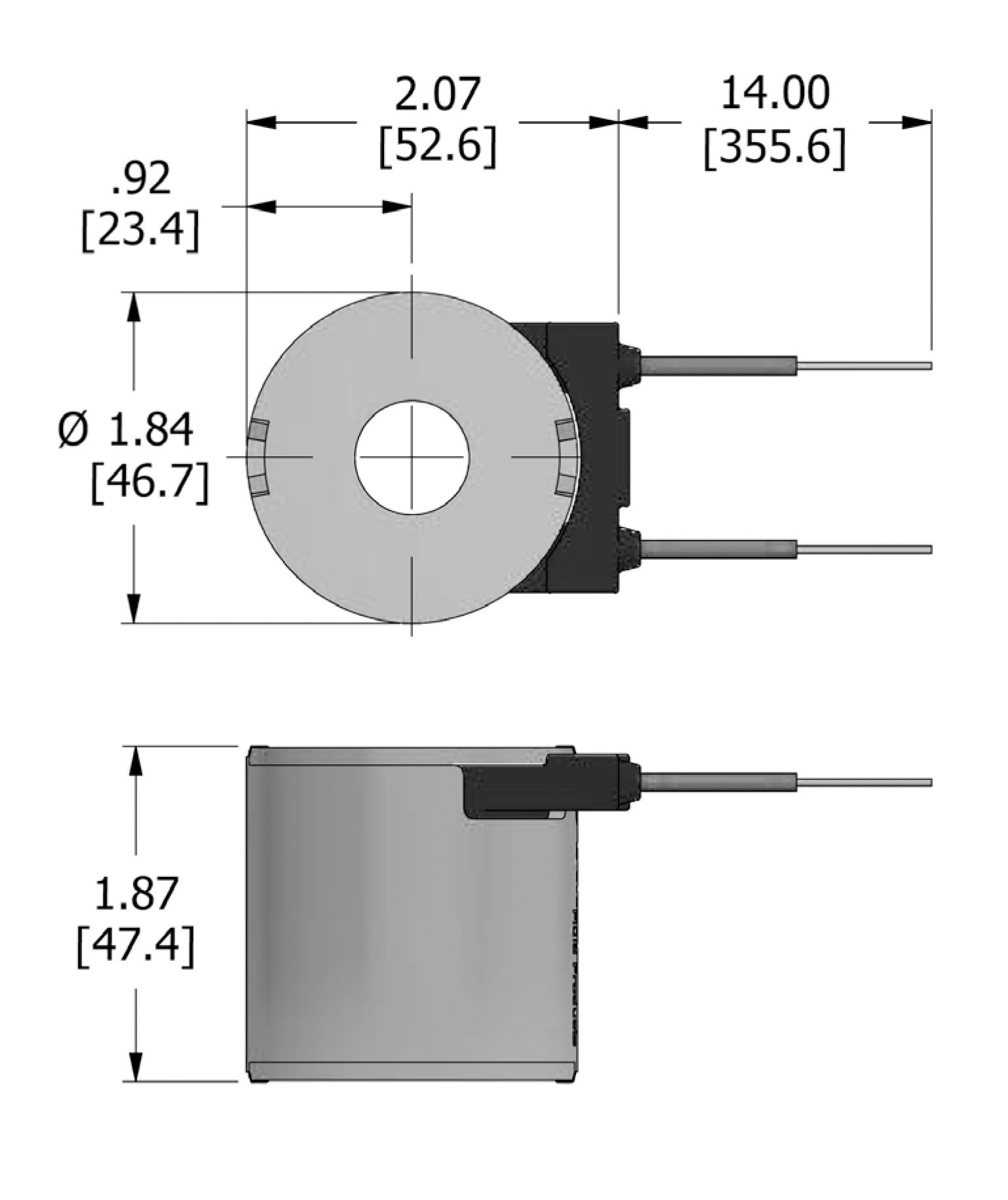

Dream Coil Series 10 K Double Leads

SINGLE LEAD (IP67 rated) - CODE - **SE

VOLTS PART NUMBER CODE LEAD COLOR
10 DC 10306-41 D10SE GREEN
12 DC 10306-42 D1SE RED
20 DC 10306-43 D20SE LIGHT BLUE
24 DC 10306-44 D2SE BLUE

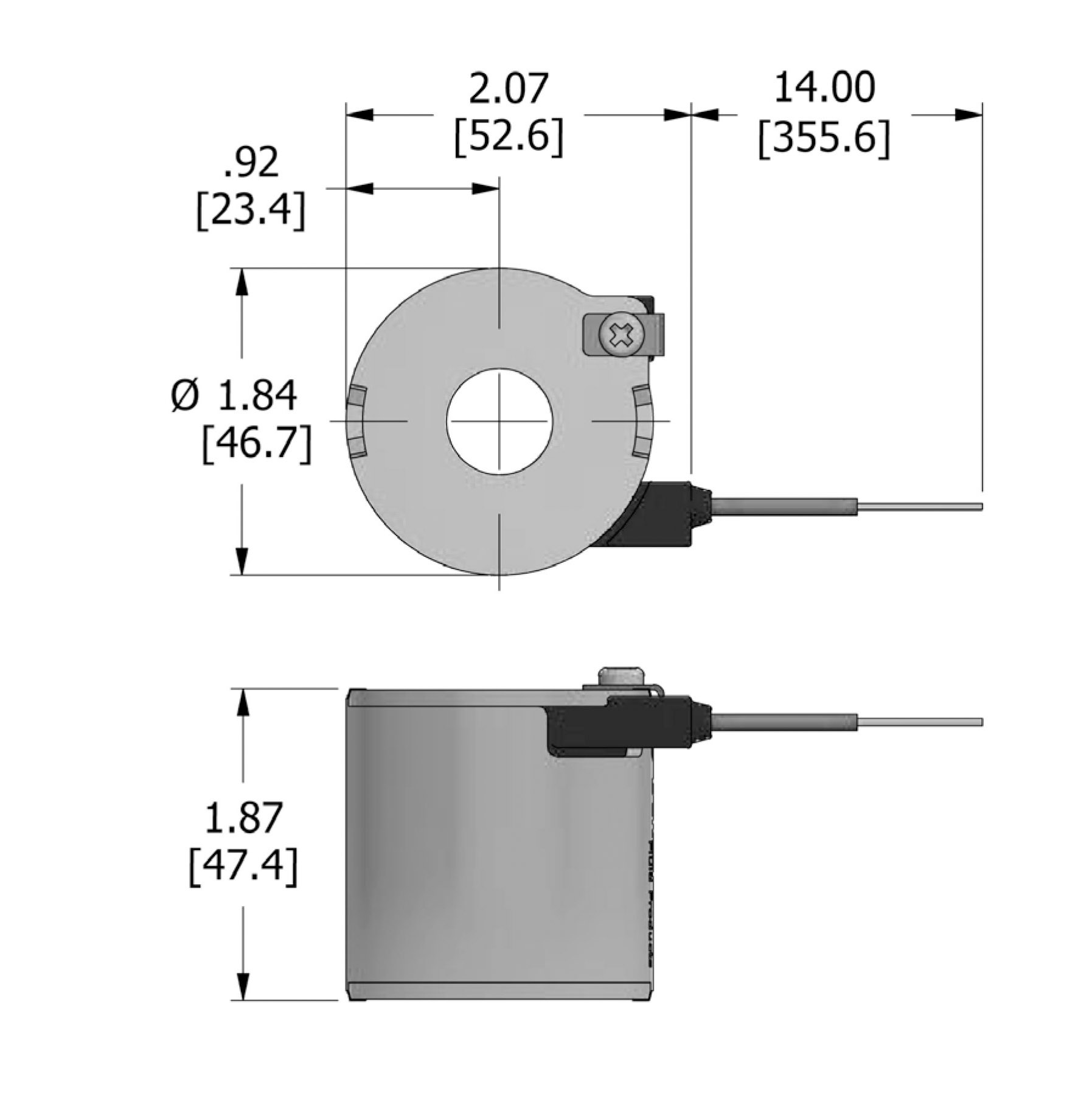

Dream Coil Series 10 K Single Lead

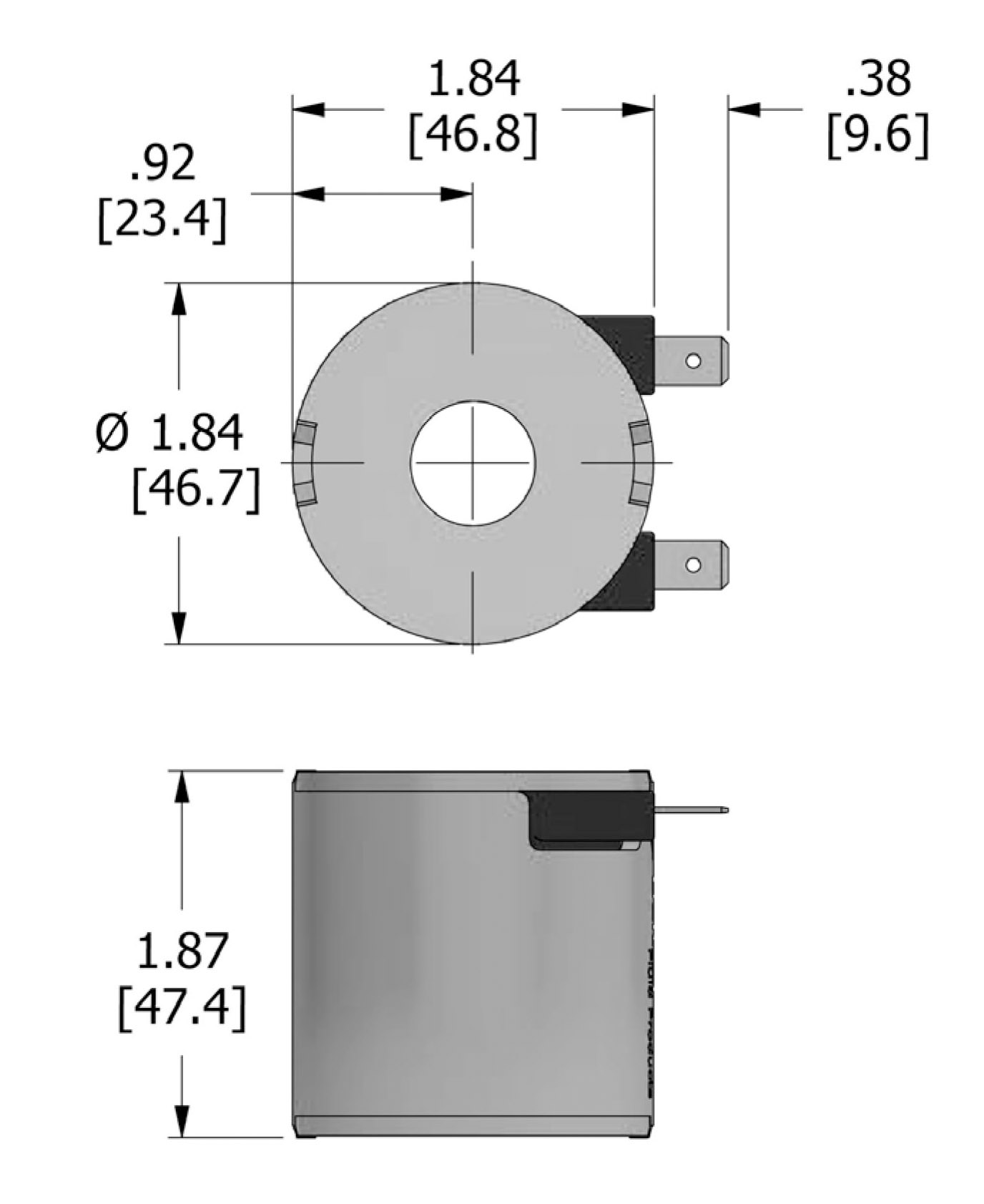

DUAL SPADE - CODE - **BE

VOLTS PART NUMBER CODE
10 DC 10306-48 D10BE
12 DC 10306-49 D1BE
20 DC 10306-50 D20BE
24 DC 10306-51 D2BE
FOR INTERNAL DIODE – CONSULT FACTORY

TERMINATION: 1/4 MALE QUICK-CONNECT PER SAE J858A (TYPE 1B)

Dream Coil Series 10 K Double Spade

SINGLE SPADE - CODE - **AE

VOLTS PART NUMBER CODE
10 DC 10306-69 D10AE
12 DC 10306-70 D1AE
20 DC 10306-71 D20AE
24 DC 10306-72 D2AE

TERMINATION: 1/4 MALE QUICK-CONNECT PER SAE J858A (TYPE 1B)

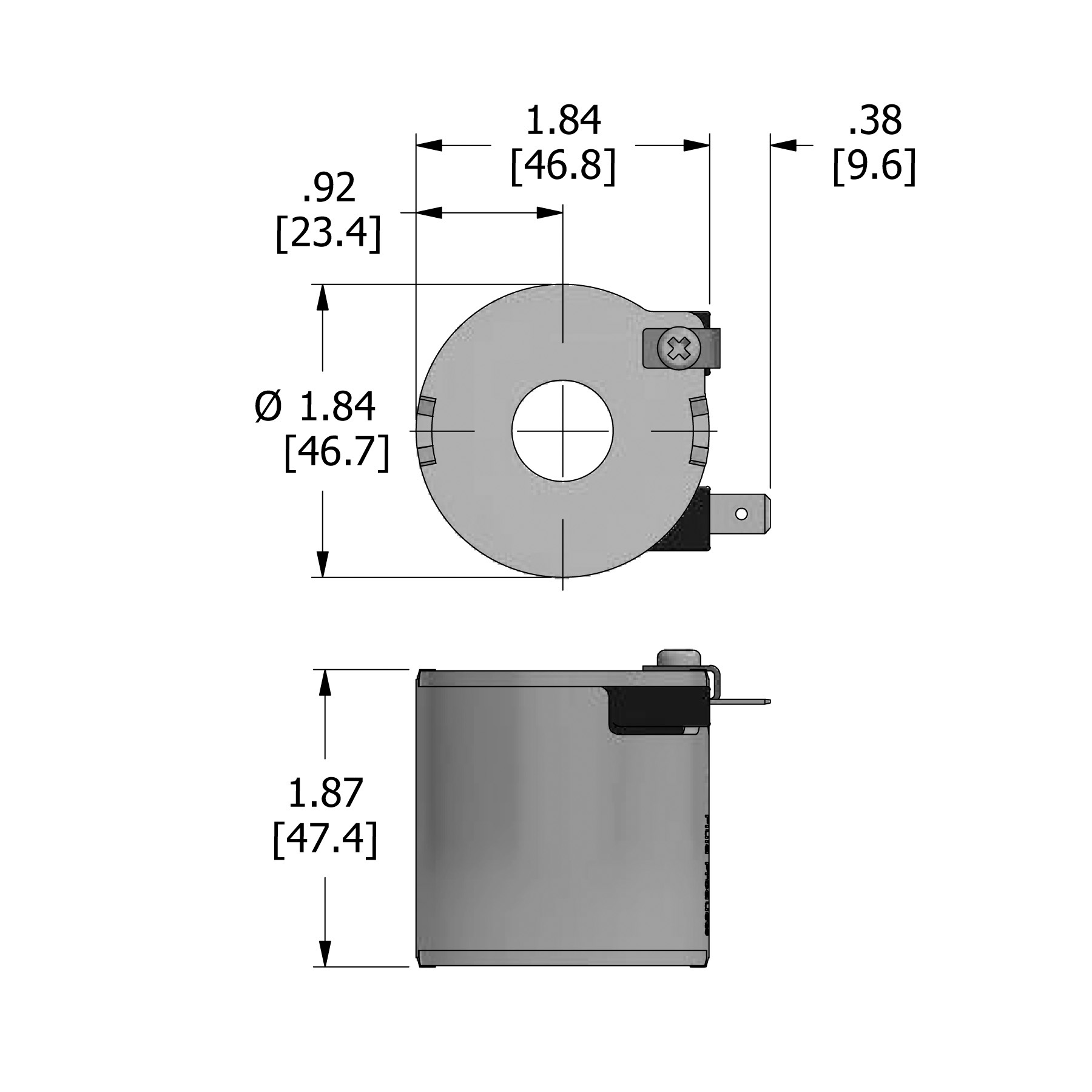

Dream Coil Series 10 K Single Spade

SINGLE STUD - CODE - **EE

VOLTS PART NUMBER CODE
10 DC 10306-76 D10EE
12 DC 10306-77 D1EE
20 DC 10306-78 D20EE
24 DC 10306-79 D2EE

TERMINATION: 8-32 MALE STUD WITH BRASS NUTS

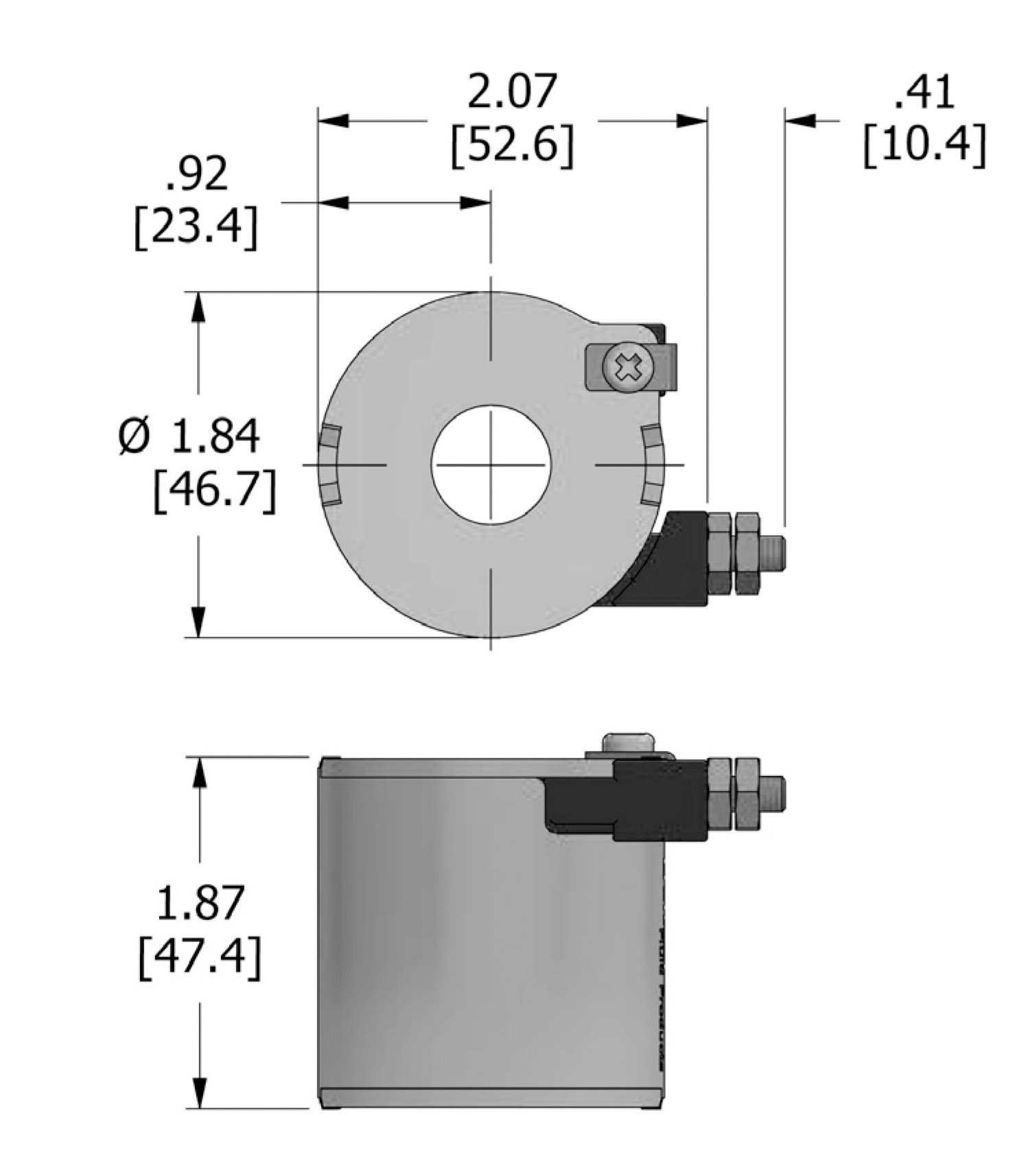

Dream Coil Series 10 K Single Stud

DEUTSCH (IP69K rated) - CODE - **UE

VOLTS PART NUMBER CODE
10 DC 10306-83 D10UE
12 DC 10306-84 D1UE
20 DC 10306-85 D20UE
24 DC 10306-86 D2UE
FOR INTERNAL DIODE – CONSULT FACTORY

TERMINATION:INTEGRAL DEUTSCH CONNECTOR DT04-2P MATING CONNECTOR DT06-2S

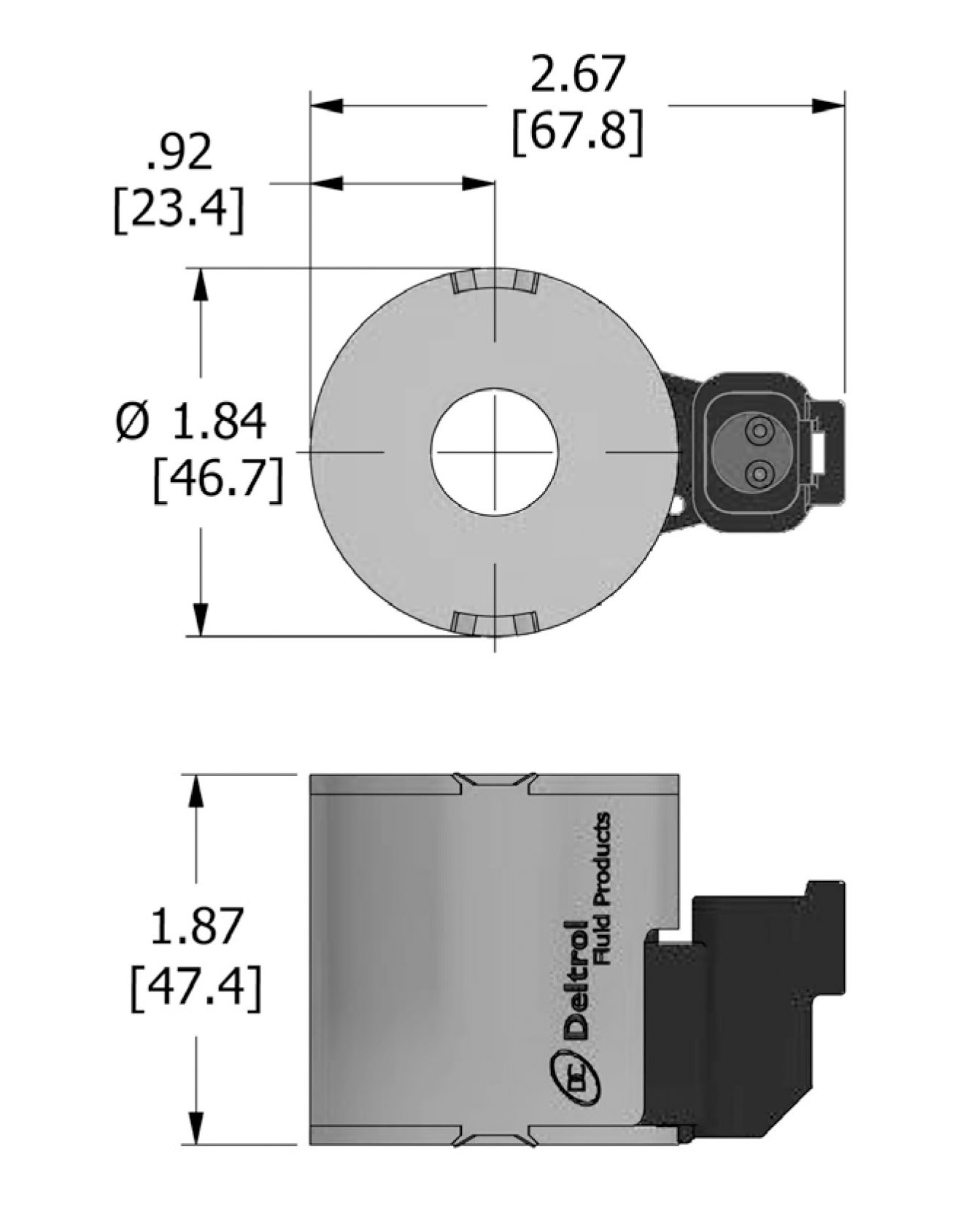

Dream Coil Series 10 K Deutsch

METRI-PACK (IP69K rated) - CODE - **PE

VOLTS PART NUMBER CODE
10 DC 10307-04 D10PE
12 DC 10307-05 D1PE
20 DC 10307-06 D20PE
24 DC 10307-07 D2PE
FOR INTERNAL DIODE – CONSULT FACTORY

Series 10 K Metri-Pack

AMP JUNIOR TIMER (IP69K rated)
CODE - **JE

VOLTS PART NUMBER CODE
10 DC 10307-25 D10JE
12 DC 10307-26 D1JE
20 DC 10307-27 D20JE
24 DC 10307-28 D2JE
FOR INTERNAL DIODE – CONSULT FACTORY

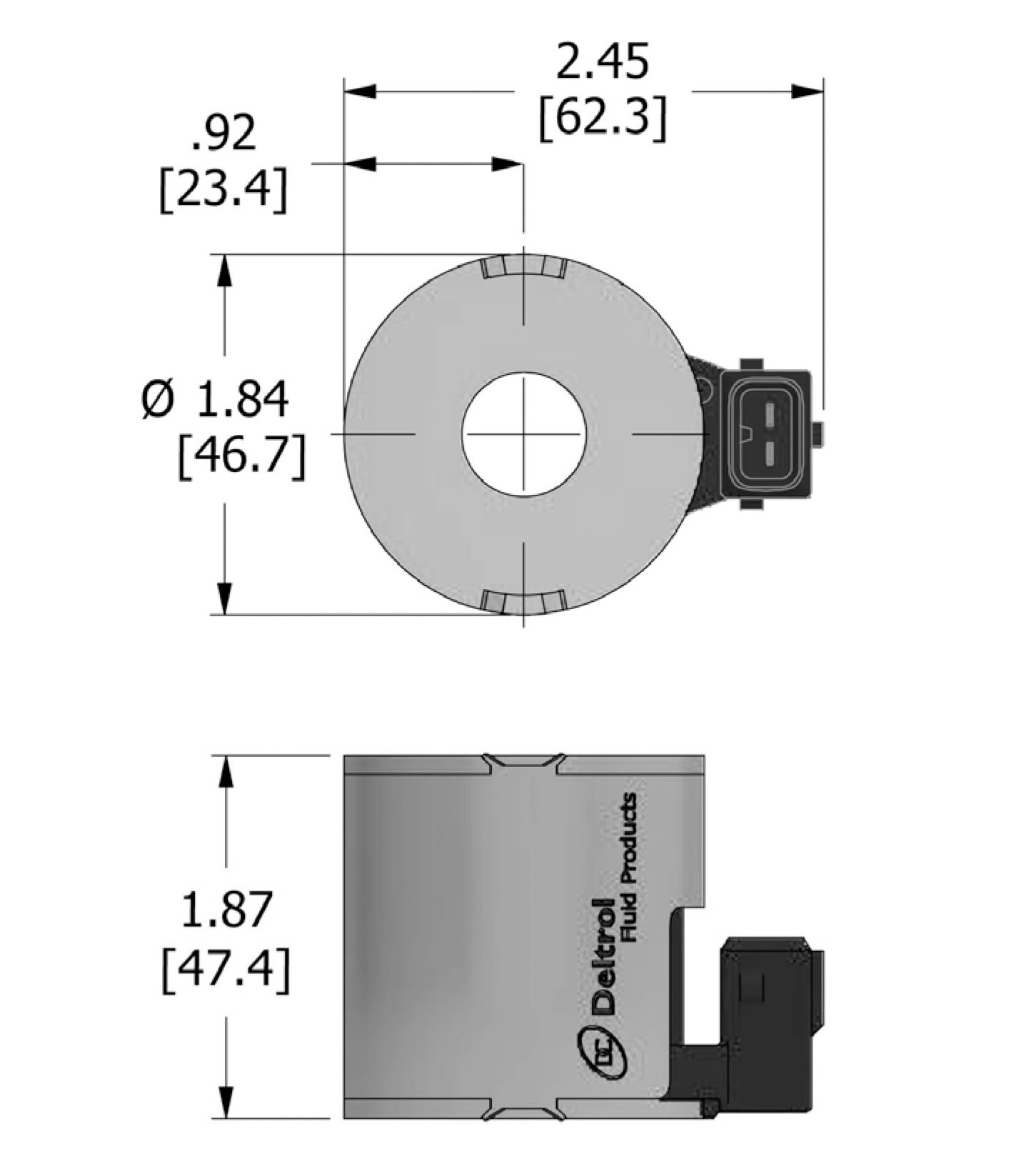

Series 10 K Amp Junior Timer

KOSTAL (IP69K rated) - CODE - **KE

VOLTS PART NUMBER CODE
10 DC 10309-09 D10KE
12 DC 10309-10 D1KE
20 DC 10309-12 D20KE
24 DC 10309-13 D2KE
FOR INTERNAL DIODE – CONSULT FACTORY

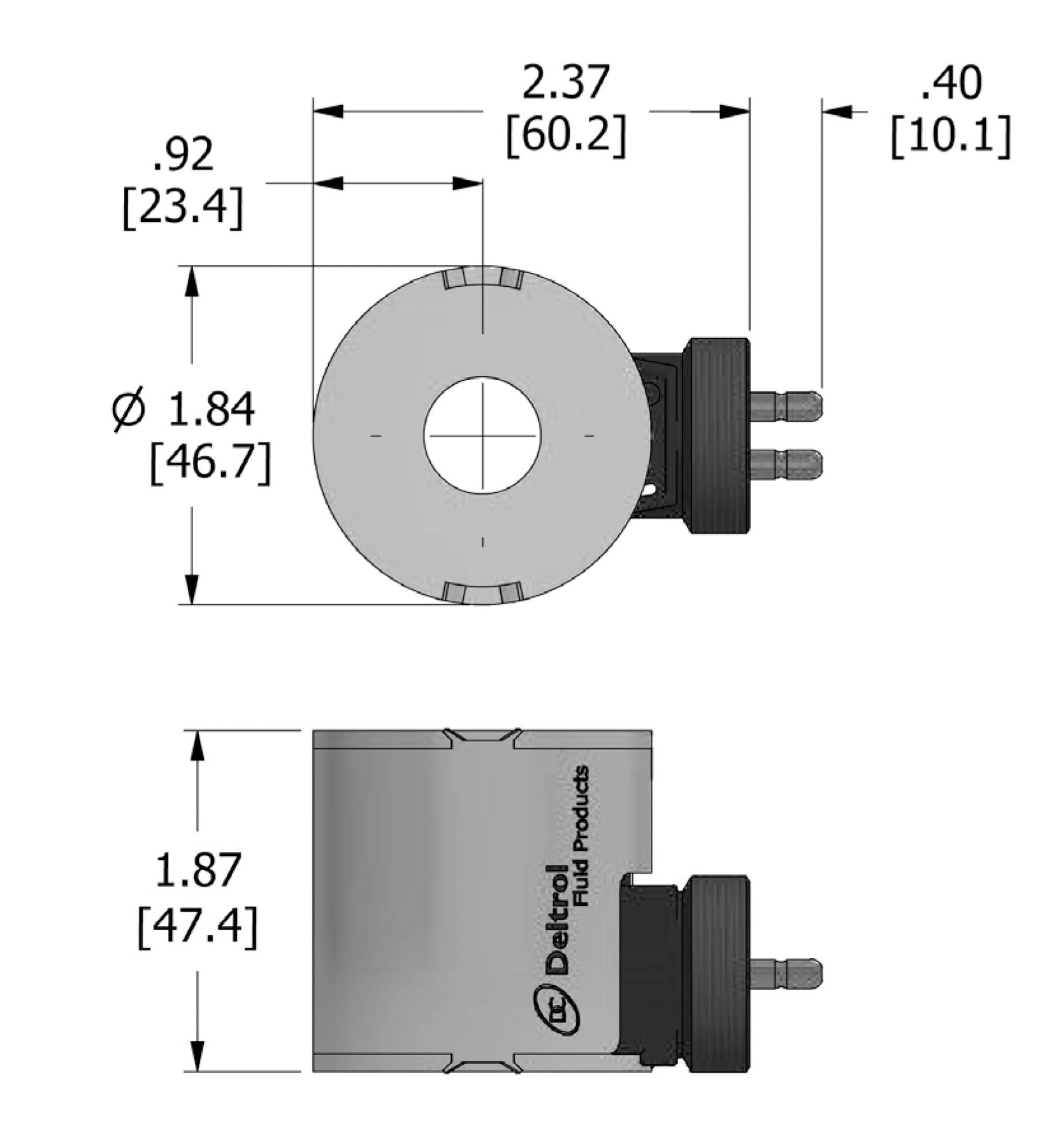

Series 10 K Kostal

DIN 43650 (HIRSCHMANN®)
(IP67K rated) - CODE - **HE

VOLTS PART NUMBER CODE
12 DC 10307-47 D10HE
24 DC 10307-49 D2HE
120 AC 10307-62 A5HE
240 AC 10307-63 A6HE
FOR INTERNAL DIODE – CONSULT FACTORY

TERMINATION: HIRSCHMANN GSR 200 – DIN 43650
FORM A/ISO 4400, EN175301-803:2000
2 POLE + GROUND – MATING CONNECTOR 43650

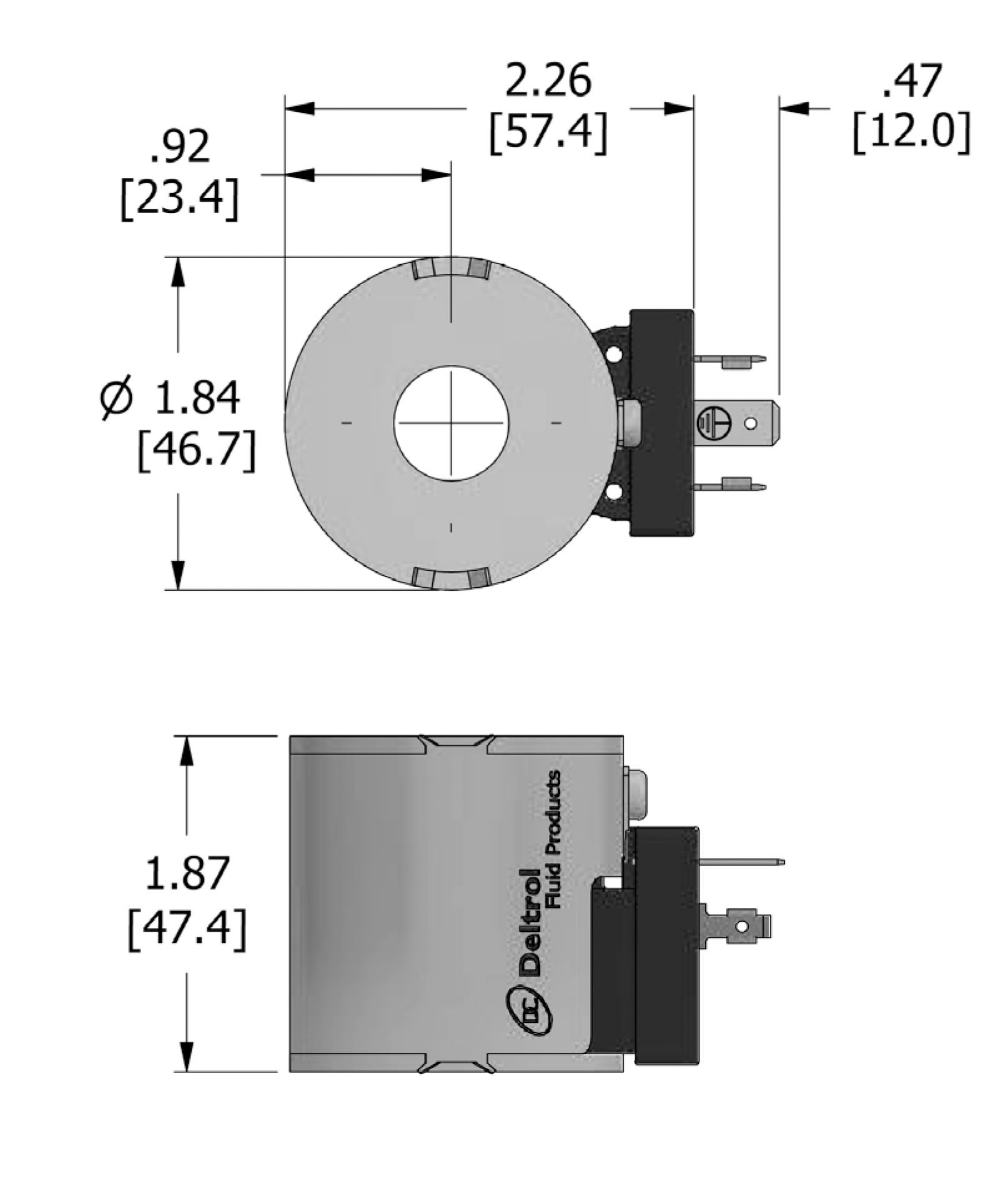

Series 10 Hirschmann®
