Series 8 S-Coils (Internal Frame)

SPECIFICATIONS

Wattage: Nominally 16 watt at 68°F./20°C.
Duty Rating: Continuous up to 115% voltage.
Ambient Operating Temperature: 212°F/100°C
Encapsulating Material: Thermoplastic Polyester (PET) (Rynite FR530).
A.C. Coils: Internally rectified with a full wave bridge (no inrush current).
Termination Options: See below and on the next page.

	16 WATT
VOLTS	OHMS	INITIAL CURRENT DRAW (AMPS)
10 DC	6.2	1.60
12 DC	9.0	1.33
20 DC	25.0	.80
24 DC	35.8	.67
120 AC	^827	.15
240 AC	^3306	.07

^ RESISTANCE CANNOT BE MEASURED ON AC COIL ASSEMBLIES

DUAL LEAD - CODE - **DS

VOLTS	PART NUMBER	CODE	LEAD COLOR
10 DC	10205-94	D10DS	GREEN
12 DC	10184-42	D1DS	RED
24 DC	10184-37	D2DS	BLUE
120 AC	10184-49	A5DS	BLACK
240 AC	10184-53	A6DS	YELLOW

FOR INTERNAL DIODE – CONSULT FACTORY

SINGLE LEAD - CODE - **SS

VOLTS	PART NUMBER	CODE	LEAD COLOR
10 DC	10194-19	D10SS	GREEN
12 DC	10184-32	D1SS	RED
24 DC	10190-44	D2SS	BLUE

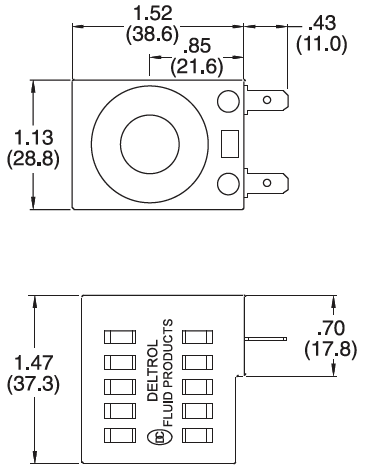

DUAL SPADE - CODE - **BS

VOLTS	PART NUMBER	CODE
10 DC	10221-46	D10BS
12 DC	10216-12	D1BS
20 DC	10222-51	D20BS
24 DC	10216-11	D2BS
120 AC	10222-49	A5BS
240 AC	10222-50	A6BS

FOR INTERNAL DIODE - CONSULT FACTORY
TERMINATION: 1/4" MALE QUICK-CONNECT PER SAE J858A (TYPE 1B)

SINGLE SPADE - CODE - **AS

VOLTS	PART NUMBER	CODE
10 DC	10222-46	D10AS
12 DC	10221-30	D1AS
24 DC	10221-47	D2AS

FOR INTERNAL DIODE – CONSULT FACTORY

TERMINATION: 1/4” MALE QUICK-CONNECT - PER SAE J858A (TYPE 1B)

SINGLE STUD - CODE - **ES

VOLTS	PART NUMBER	CODE
10 DC	10196-60	D10ES
12 DC	10196-61	D1ES
24 DC	10196-62	D2ES

FOR INTERNAL DIODE – CONSULT FACTORY

TERMINATION: 8-32 MALE STUD WITH BRASS NUTS

DEUTSCH - CODE - **US

VOLTS	PART NUMBER	CODE
10 DC	10210-13	D10US
12 DC	10222-99	D1US
20 DC	10228-95	D20US
24 DC	10228-52	D2US

FOR INTERNAL DIODE – CONSULT FACTORY

TERMINATION: INTEGRAL DEUTSCH CONNECTOR DT04-2P - MATING CONNECTOR - DT06-2S

DIN 43650 (HIRSCHMANN^®) - CODE - **HS

VOLTS	PART NUMBER	CODE
12 DC	10246-17	D1HS
24 DC	10246-18	D2HS
120 AC	10246-43	A5HS
240 AC	10246-20	A6HS

FOR INTERNAL DIODE – CONSULT FACTORY

TERMINATION: HIRSCHMANN GSR 200 – DIN 43650
FORM A/ISO 4400, EN175301-803:2000
2 POLE + GROUND – MATING CONNECTOR 43650

CONDUIT (FEMALE 1/2-14 NPT) - CODE - **C

VOLTS	PART NUMBER	CODE
120 DC	10148-70	A5C
240 DC	10176-89	A6C

DUTY RATING INTERMITTENT

LEAD WIRES: 18/20 GAUGE MEETS SAE J1128 XLPE, TYPE SXL
