Series 8 K-Coils (External Frame)

Series 8 K-Coils (External Frame)

SPECIFICATIONS

Wattage: Nominally 16 watt at 68°F./20°C.
Duty Rating: Continuous up to 115% voltage.
Ambient Operating Temperature: 212°F/100°C.
Encapsulating Material: Thermoplastic Polyester (PET) (Rynite FR530).
A.C. Coils: Internally rectified with a full wave bridge (no inrush current).
Termination Options: See below and on the next page.
Environmental: IP69K for Deutsch, Metri-Pack and Amp Junior timer-style coils.

VOLTS OHMS INITIAL CURRENT
DRAW (AMPS)
10 DC 6.2 1.60
12 DC 9.0 1.33
20 DC 25.0 .80
24 DC 35.8 .67

DUAL LEAD - CODE - **DE (IP65 rated)

VOLTS PART NUMBER CODE LEAD COLOR
10 DC 10257-40 D10DE GREEN
12 DC 10244-28 D1DE RED
20 DC 10258-75 D20DE LIGHT BLUE
24 DC 10257-41 D2DE BLUE
FOR INTERNAL DIODE – CONSULT FACTORY

Dream Coil Series 8 Double Leads

SINGLE LEAD - CODE - **SE (IP65 rated)

VOLTS PART NUMBER CODE LEAD COLOR
10 DC 10257-44 D10SE GREEN
12 DC 10244-29 D1SE RED
20 DC 10258-76 D20SE LIGHT BLUE
24 DC 10257-45 D2SE BLUE

Dream Coil Series 8 Single Lead

DUAL SPADE - CODE - **BE

VOLTS PART NUMBER CODE
10 DC 10257-46 D10BE
12 DC 10244-27 D1BE
20 DC 10257-47 D20BE
24 DC 10257-48 D2BE
FOR INTERNAL DIODE – CONSULT FACTORY

TERMINATION: TERMINATION: 1/4” MALE QUICK-CONNECT. PER SAE J858A (TYPE 1B)

Dream Coil Series 8 Double Spade

SINGLE SPADE - CODE - **AE

VOLTS PART NUMBER CODE
10 DC 10257-51 D10AE
12 DC 10252-18 D1AE
20 DC 10258-77 D20AE
24 DC 10257-52 D2AE

TERMINATION: 1/4” MALE QUICK-CONNECT. PER SAE J858A (TYPE 1B)

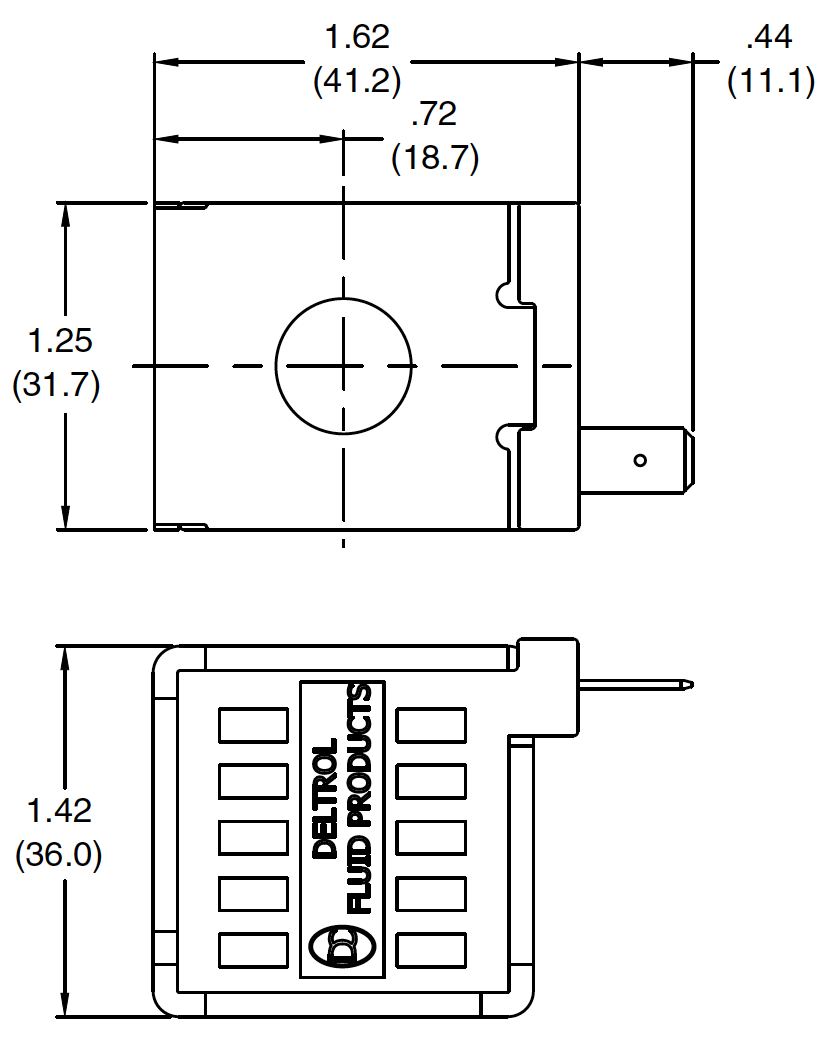

Dream Coil Series 8 Single Spade

SINGLE STUD - CODE - **EE

VOLTS PART NUMBER CODE
10 DC 10257-53 D10EE
12 DC 10252-19 D1EE
20 DC 10258-78 D20EE
24 DC 10257-54 D2EE

TERMINATION: 8-32 MALE STUD WITH BRASS NUTS

Dream Coil Series 8 Single Stud

DEUTSCH - CODE - **UE (IP69K rated)

VOLTS PART NUMBER CODE
10 DC 10257-55 D10UE
12 DC 10244-24 D1UE
20 DC 10257-56 D20UE
24 DC 10257-57 D2UE
FOR INTERNAL DIODE – CONSULT FACTORY

TERMINATION: TERMINATION: INTEGRAL DEUTSCH CONNECTOR - DT04-2P. MATING CONNECTOR - DT06-2S

Dream Coil Series 8 Deutsch

METRI-PACK - CODE - **PE (IP69K rated)

VOLTS PART NUMBER CODE
10 DC 10257-58 D10PE
12 DC 10244-25 D1PE
20 DC 10257-59 D20PE
24 DC 10257-60 D2PE
FOR INTERNAL DIODE – CONSULT FACTORY

Dream Coil Series 8 Metri-Pack

AMP JUNIOR TIMER - CODE - **JE (IP69K rated)

VOLTS PART NUMBER CODE
10 DC 10257-61 D10JE
12 DC 10244-26 D1JE
20 DC 10257-62 D20JE
24 DC 10257-63 D2JE
FOR INTERNAL DIODE – CONSULT FACTORY

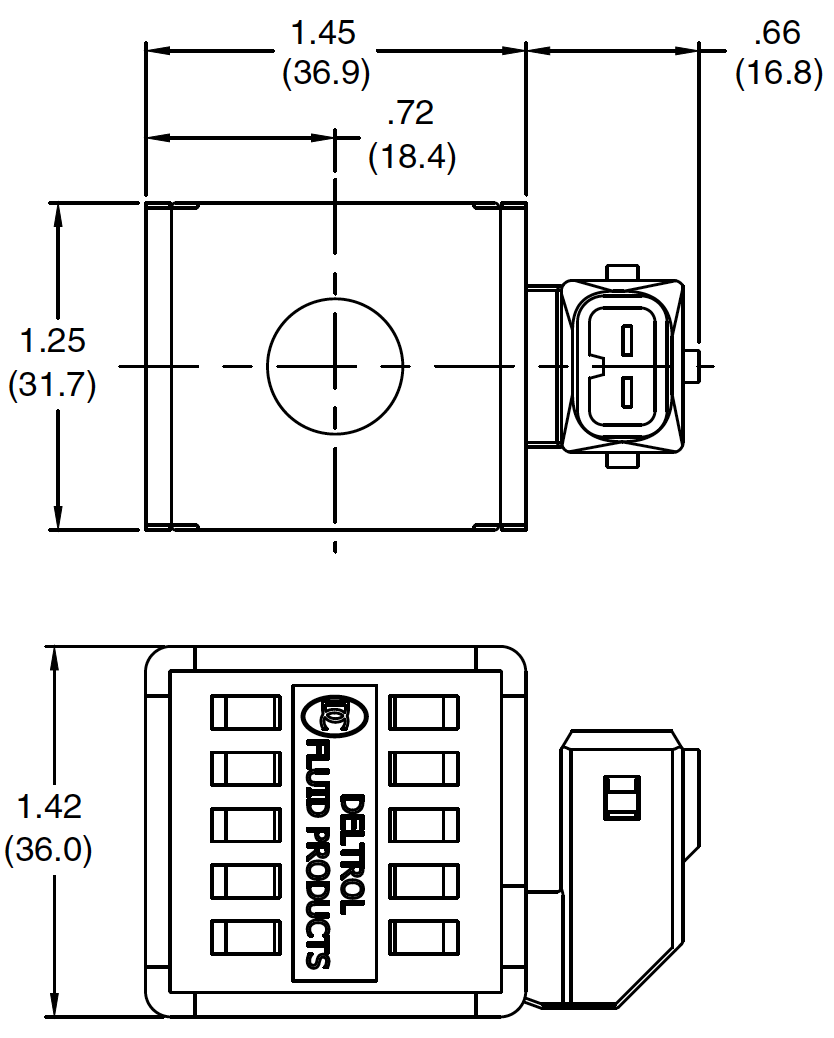

Dream Coil Series 8 Amp Junior Timer
